Injection Mold & Die Storage Racks

Get A Quote

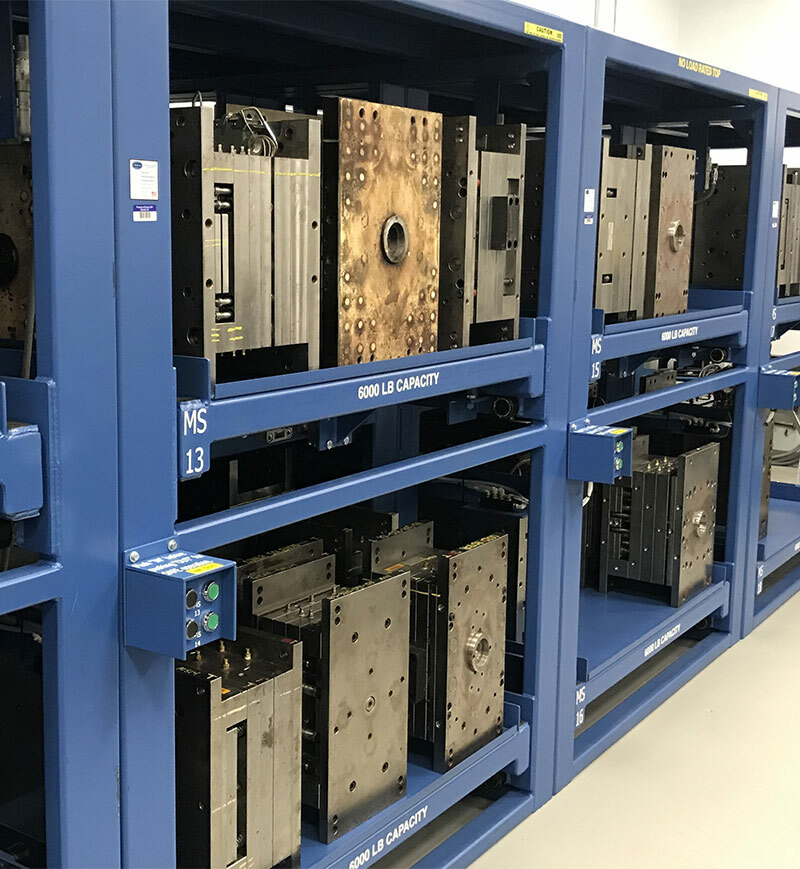

Ready for an easier, safer, and more cost-effective way to handle and store your injection molds and dies? Injection mold and die storage racks are the answer. Used in conjunction with an overhead crane system; simply extend the shelf, securely hook the mold or die and set the tooling directly into your machine. No overhead crane? Check out our rack systems with built-in cranes. These are the highest quality injection mold and die storage racks you can buy with structural steel shelf carriages and automatic safety interlocks that lock in all other shelves when one shelf is extended. All rotary die storage racks are manufactured exclusively in the USA.

Injection Mold Storage Rack Features & Benefits

  • Improves Material Handling
  • Improves Ergonomics
  • Reduces Injuries
  • Increases Safety
  • Saves Floor Space
  • Reduction of Labor Costs
  • Equipment Reliability
  • Improve Efficiency
  • Maximize Weight Capacity

Injection Mold & Die Storage Rack Specifications

Manual Racks: Load capacity per shelf from 300 to 3,000 lbs., shelf widths up to 96", shelf depths up to 60" and rack heights up to 120".

Pneumatic Racks: Load capacity per shelf up to 20,000 lbs., shelf widths up to 120", shelf depths up to 72" and rack heights up to 144".

Our racks are made to customer specification.
Provide a list of your part dimensions and floor space available, and Proper Storage Systems will customize a solution that fits your needs. Our racks maximize available space, improve employee safety and increase productivity.
The racks below are projects we have designed for other customers.
Quote a similar project or Request A Quote for your needs.

Injection Mold & Die Storage Rack Example Projects

Below are some examples of our previous injection mold & die storage rack projects that were made to meet our customer's specifications.

IM1

IM1 - Manual Injection Mold Storage Roll Out Rack

Roll-out shelving racks for injection molds and dies provide easy accessibility and identification of multiple molds. Automatic safety interlock system for only one shelf extending at a time comes standard.
Quote A Similar Project
IM2

IM2 - Manual Injection Mold Storage Roll Out Rack

Reinforced rack tops provide an economical way to store your heaviest tools with rack top capacities up 20,000 lbs or more.
Quote A Similar Project
IM3

IM3 - Pneumatic Injection Mold Storage Roll Out Rack

Pneumatic roll-out shelving racks save space and simplify handling for both large injection molds and large quantities of smaller molds. This two level rack offers 24,000 total pounds of capacity.
Quote A Similar Project
IM4

IM4 - Manual Stamping Die Storage Roll Out Rack

Roll-out shelving provides easy and safe access to injection molds and dies. Shelves are adjustable on 1" centers to handle your changing inventory of molds.
Quote A Similar Project
IM5

IM5 - Conveyor Roller Stamping Die Storage Rack

Mold and Die storage racks with conveyor rollers maximize storage space and provide easy access to dies with a transfer cart. We custom design the rack for your specific dies and include safety stops.
Quote A Similar Project
IM6

IM6 - Pneumatic Stamping Die Storage Roll Out Rack

High capacity pneumatic roll-out shelving mold and die racks allow you to store your heaviest molds with ease so you can maximize valuable floor space. Racks ship fully assembled making set up simple.
Quote A Similar Project
IM7

IM7 - Pneumatic Injection Mold Storage Roll Out Racks

This series of roll-out shelving injection mold racks reduced floor space requirements by 70% and cut machine change-over time in half.
Quote A Similar Project
IMC1

IMC1 - Manual Injection Mold Storage Roll Out Racks

Injection mold roll-out shelving racks are able to store large quantities of large and small dies. Rack tops may be reinforced to store heavier molds.
Quote A Similar Project
IMC2

IMC2 - Pneumatic Manufacturing Parts Roll Out Rack

Pneumatic injection mold storage racks with roll-out shelves allow vertical storage and access to heavy molds without forklifts. Custom sizes and weight capacities up to 20,000 lbs. per shelf are available.
Quote A Similar Project
IMC3

IMC3 - Pneumatic Tooling Storage Roll Out Racks

Multiple smaller injection molds can be stored on a single shelf. Shelves can be fabricated with custom cradling to accommodate mold attachments.
Quote A Similar Project
IMC4

IMC4 - Manual Injection Mold Storage Roll Out Rack

Roll-out shelves provide safe and easy access to molds and other tooling using an overhead lift.
Quote A Similar Project
IMC5

IMC5 - Pneumatic Injection Mold Storage Roll Out Rack

Proper Storage System's new line of full extension pneumatic roll-out shelving racks provide per shelf capacity of 4,000 lbs. Multiple shelf size options make storing multiple injection molds per shelf a reality.
Quote A Similar Project
IMC6

IMC6 - Manual Injection Mold Storage Racks

Organize your injection molds in close proximity to the appropriate work area to reduce change over time.
Quote A Similar Project
IMC7

IMC7 - Pneumatic Injection Mold Storage Roll Out Racks

Two level air powered injection mold racks provide ample storage for heavy injection molds.
Quote A Similar Project
IMC8

IMC8 - Manual Oil Drilling Tools Storage Roll Out Rack

Full extension roll-out shelving racks provide flexible storage options for mold, dies and other industrial components. Shelves are adjustable on 1" centers.
